Fracturing Systems
Optimize Your Completion Design
NCS Multistage offers a systematic approach that allows you to make well-to-well comparisons with confidence and optimize a pinpoint completion design for any given field or formation.
We provide consistent, repeatable frac delivery in addition to measured downhole data that helps you to better understand the formation, the well, and the stimulation.
Unlike conventional methods, our pinpoint fracturing solutions enable you to know how many entry points are created, their precise location, and exactly how much proppant is placed into each stage.
One Provider. Many Solutions.

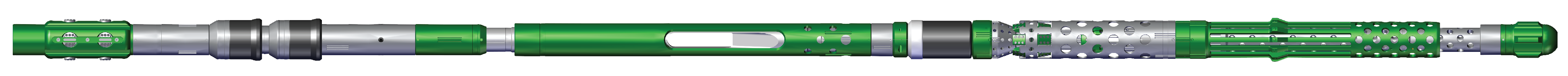

Innovus™ Frac Isolation Assembly
The Innovus™ Frac Isolation Assembly boasts more than 10,000 successful completions and is subject to continuous tool improvements.
- Designed to locate and operate Innovus™ frac sleeves
- The most advanced system in the world
- Multiple world record holder in its category
- Deployed on coiled tubing or a jointed pipe
- Streamlined profile for fast travel through the wellbore
- Offers higher injection rates and longer tool life
- Accommodates frac rates up to 80 bbl/min (12.7 m3/min)
- Hardened erosion-resistant surfaces extend service life
- Recessed pocket slips protected during wellbore travel
- Circulation capability enables fast recovery from screen-outs
- Dependable all-mechanical operation
- Proprietary extreme-service isolation packer seal.
- Robust EQ valve equalizes differential pressure
- Prevents damage to the packer seal
- Innovative locate regulator ensures consistent sleeve locate
- Releases forces and uniform signature for operational certainty
Innovus™ Convertible Frac Sleeve
The Innovus™ Convertible Frac Sleeve features a dual inner barrel and can be converted post-frac or post-production for regulated water-injection using the Torius™ regulator.
- Special-purpose sleeve with a dual inner barrel
- Can be deployed in cemented or open hole applications
- Injection regulated by a calibrated tortuous flow path
- Deployed on coiled tubing or jointed pipe
- No pumpdown plugs or balls required
- No drillouts needed
- Supports frac rates up to 80 bbl/min (12.7 m3/min)
- Sleeve make-up length is 40 in (101.6 cm) or less
- Allows frac-port spacing as close as 15 ft (4.6 m)
- Compact and easy to handle
- No pup joints required for API
- No pup joints needed for standard BTC or LTC thread types
- Sleeves can be torqued through
- Sleeves can be installed in any order
- Proven for stage-by-stage wellbore management
- Optional Shift-Frac-Close® sequence stops flowback after stimulation
- Operated by the Innovus™ frac-isolation assembly

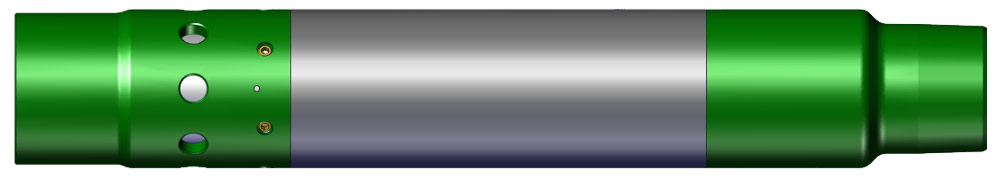

Innovus™ SD Frac Sleeve
Innovus™ SD frac sleeves are the most economical sleeves in the Innovus™ system. They are used for completions with lower frac rates, proppant concentration and total tonnage.
- Can be deployed in cemented or open hole applications.
- Operated by the Innovus™ frac isolation assembly
- Deployed on coiled tubing or jointed pipe
- No pumpdown plugs or balls required
- No drillouts needed
- Accommodates frac rates up to 32 BBL/MIN (12.7 m3/min)
- Sleeve make-up length is 40 in. (101.6 cm) or less
- Allows frac-port spacing as close as 15ft (4.6 m)
- Compact and easy to handle
- No pup joints required for API connections
- Sleeves can be torqued through.
- Sleeves can be installed in any order
- Proven functionality for stage-by-stage management
- Optional Shift-Frac-Close® sequence stops proppant flowback
- Allows fracs to heal before reopening sleeves for production
Innovus™ HD Frac Sleeve
Innovus™ HD sleeves are longer than SD sleeves and used for stimulations that involve higher frac rates, concentrations of sand, and total tonnage.
Innovus™ HD sleeves are compatible with Innovus™ frac-isolation assemblies that have special erosion-resistant components positioned across the frac ports.
Additionally, HD sleeves incorporate premium MBED™ reclosing seals and other features that ensure reliable performance in the most demanding applications.
- Can be deployed in cemented or open hole
- Operated by the Innovus™ frac-isolation assembly
- Deployed on coiled tubing or jointed pipe
- No pumpdown plugs or balls required
- No drillouts needed
- Accommodates frac rates up to 80 bbl/min (12.7 m3/min)
- Sleeve make-up length is 40 in (101.6 cm) or less
- Allows frac-port spacing as close as 15 ft (4.6 m)
- Compact and easy to handle
- No pup joints required for API connections
- Sleeves can be torqued through
- Sleeves can be installed in any order
- Proven functionality for stage-by-stage management
- Optional Shift-Frac-Close® sequence stops proppant flowback
- Allows fracs to heal before reopening sleeves for production
Innovus™ Well Stroker
When Innovus™ Convertible sleeves are utilized in a wellbore, this is the BHA required to manipulate the injection barrel. This converts the sleeve into the regulated water-injection mode.

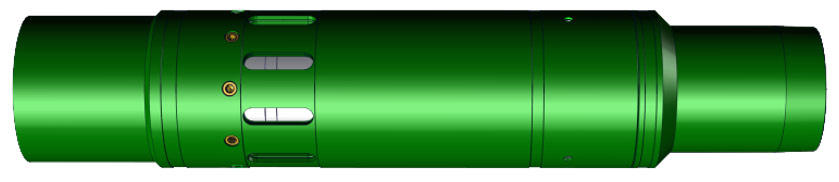

Proppex™ Frac Sleeve
The Proppex proppant exclusion sleeve prevents sand from flowing into the wellbore and shifts into a “screen” mode to prevent inflow as soon as simulation operations are completed.
- Normal pinpoint fracture operations can be performed
- Post frac, the FIA shifts a screen in front of the ports to prevent proppant flowback
Terrus™ Water Injection System
The Terrus™ system combines regulated injection sleeves with hydraulically actuated zone-isolation packers to improve efficiency of waterflooding and sweeping activities.
- Provides cost-effective, retrofit wellbore segmentation and injection regulation
- Improves efficiency of waterflooding and sweeping activities
- Enables individual zone injection and profile management to balance flow
- Reduces efficiency loss due to short-circuit break-throughs and thief zones
- Mitigates plugging and issues caused by obstructions
- Deployed on production tubing inside existing production casing
- Inner sleeve is positioned using a flow-activated shifting tool
- Valve is shifted using B shifting tool
